GEF5S-Pin Insertion Machine

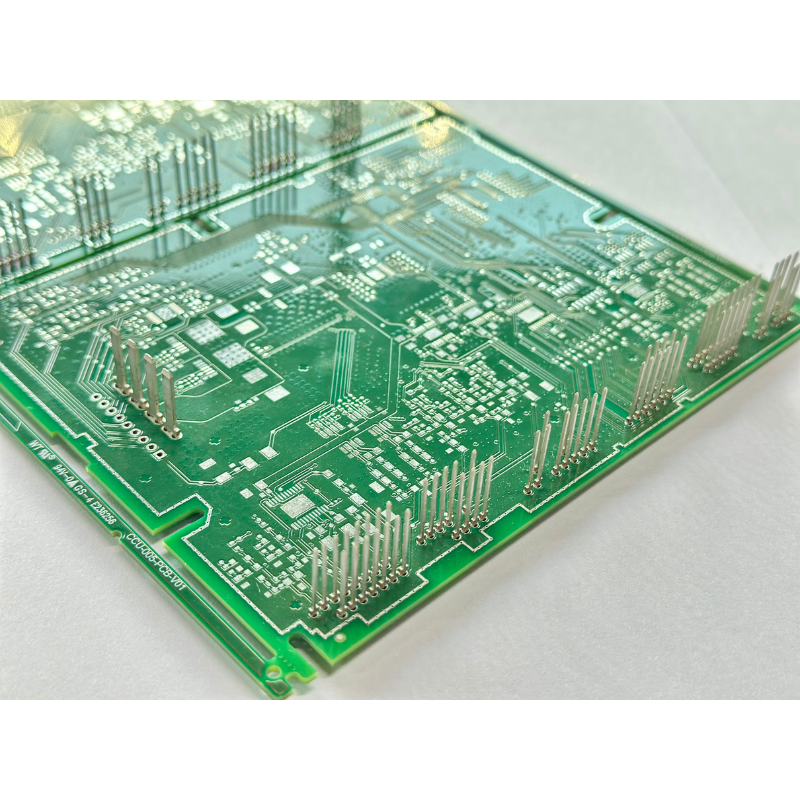

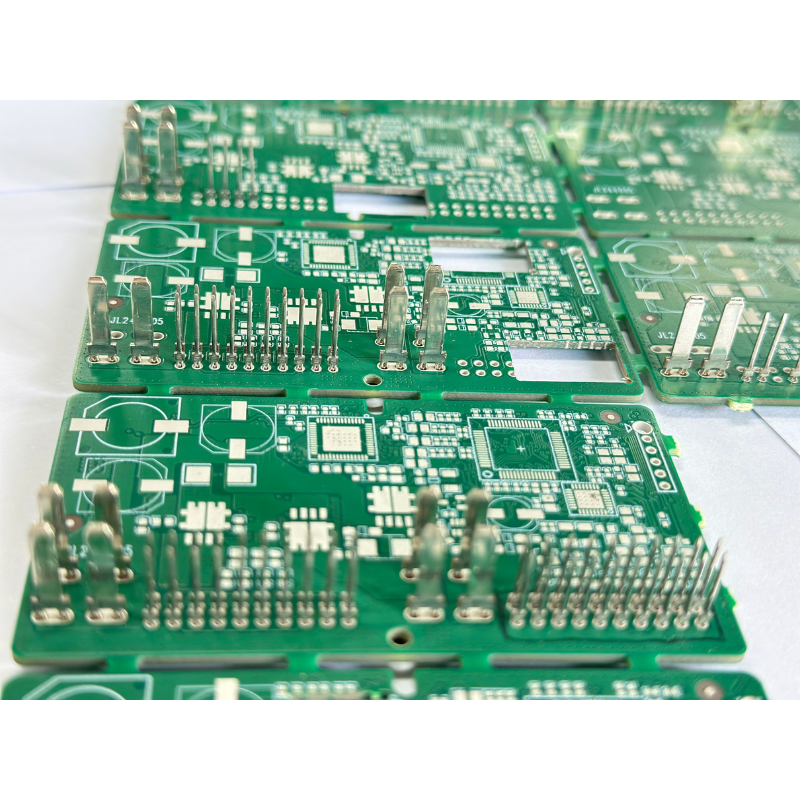

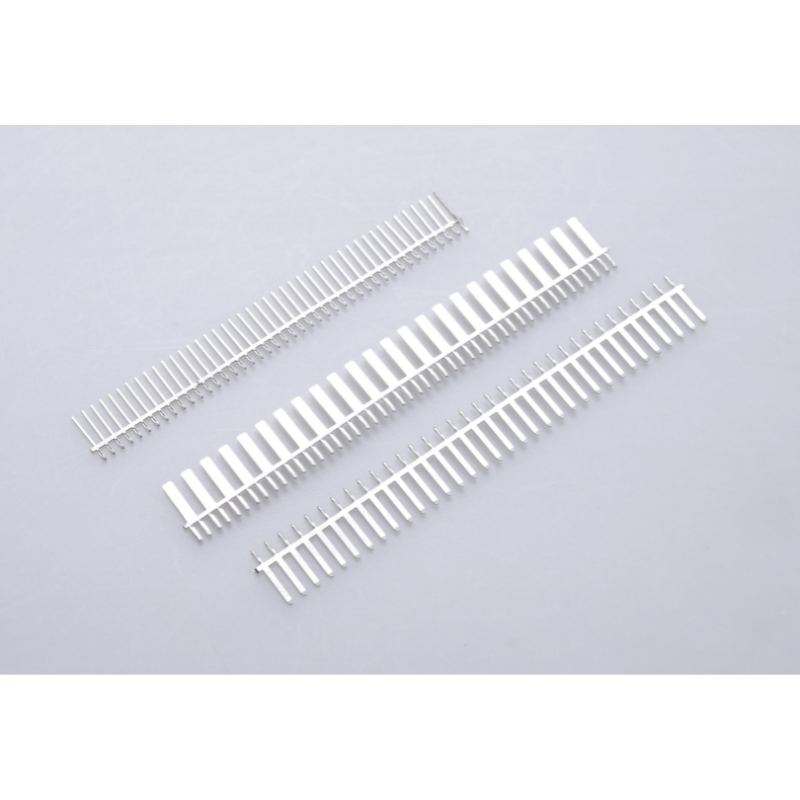

The machine is used to automatically cut the rolled metal pins into a single pin before they are accurately inserted onto the PCB driven by cam mechanism with servo motor.
Feature:
-Marble frame ensures the perpendicularity, flatness, parallelism and accuracy
-Stable XandYaxis driven byservo motor
-CAM structure ensures high productivity and repetitive precision
-Connection with MEs by QR code recognition
-Real-time insertion force monitoring is available to achieves high-quality production
Product Description:
The machine is used to automatically cut the rolled metal pins into a single pin before they are accurately inserted onto the PCB driven by cam mechanism with servo motor. During the process, position is corrected by camera first.and insertion status is monitored in real-time, including insertion force,insertion depth etc. Monitoring,programming, automatic analysis and easy operation make stable and automatic production.
