GEF6-Pin Insertion Machine

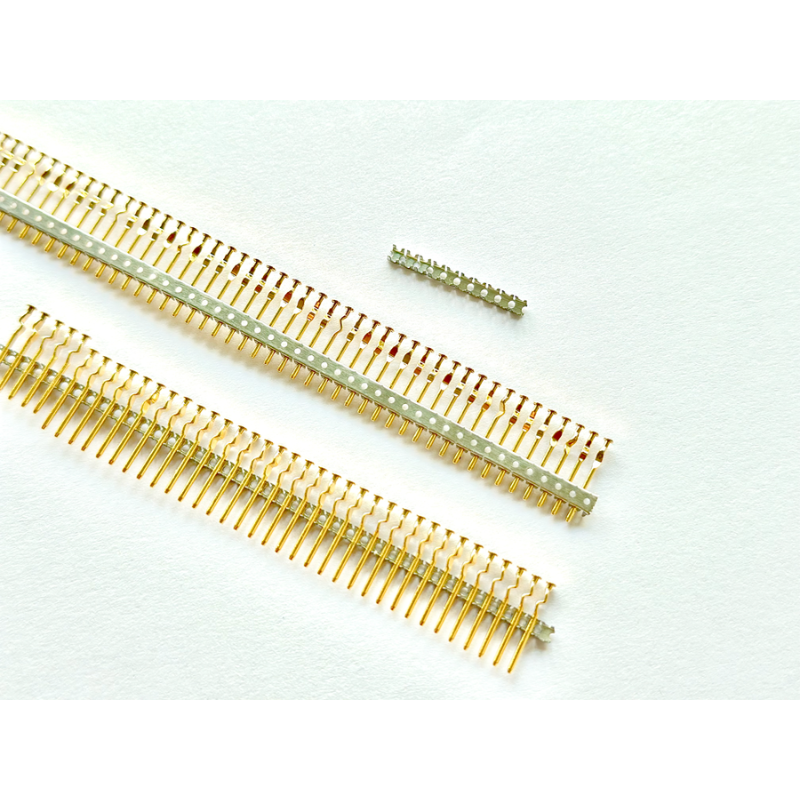

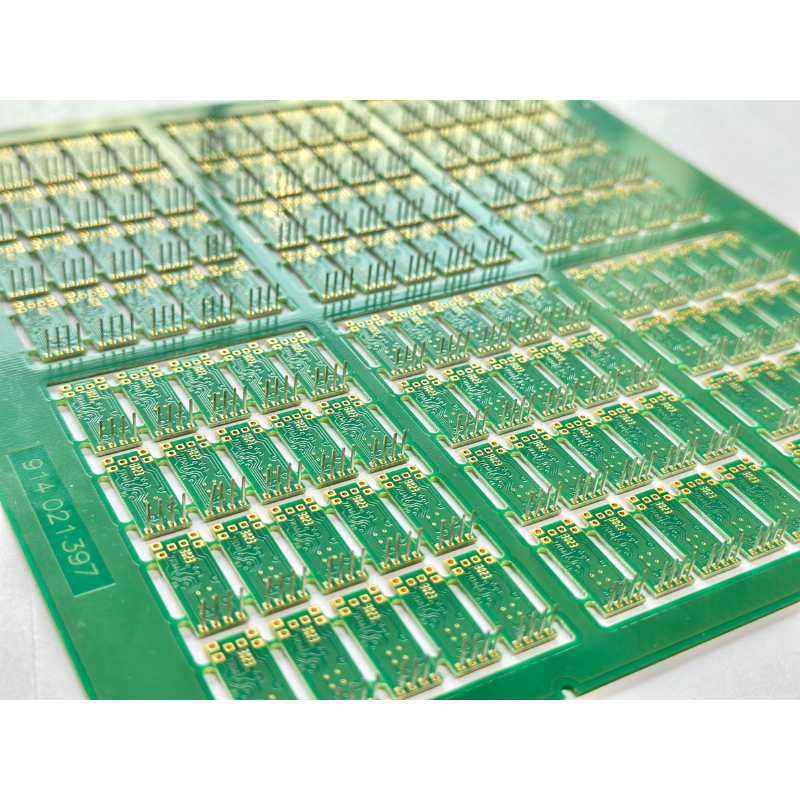

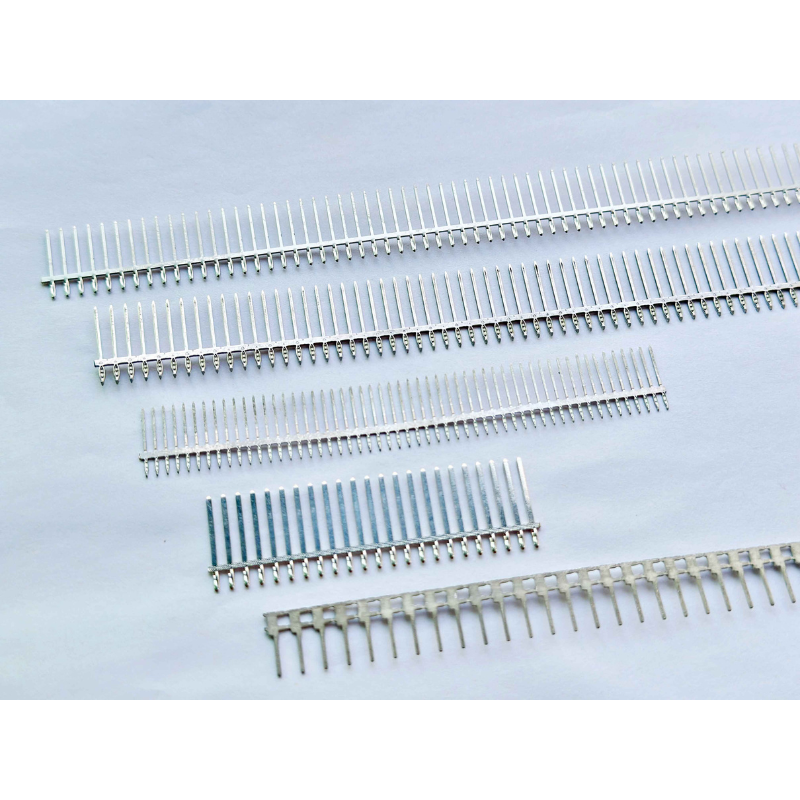

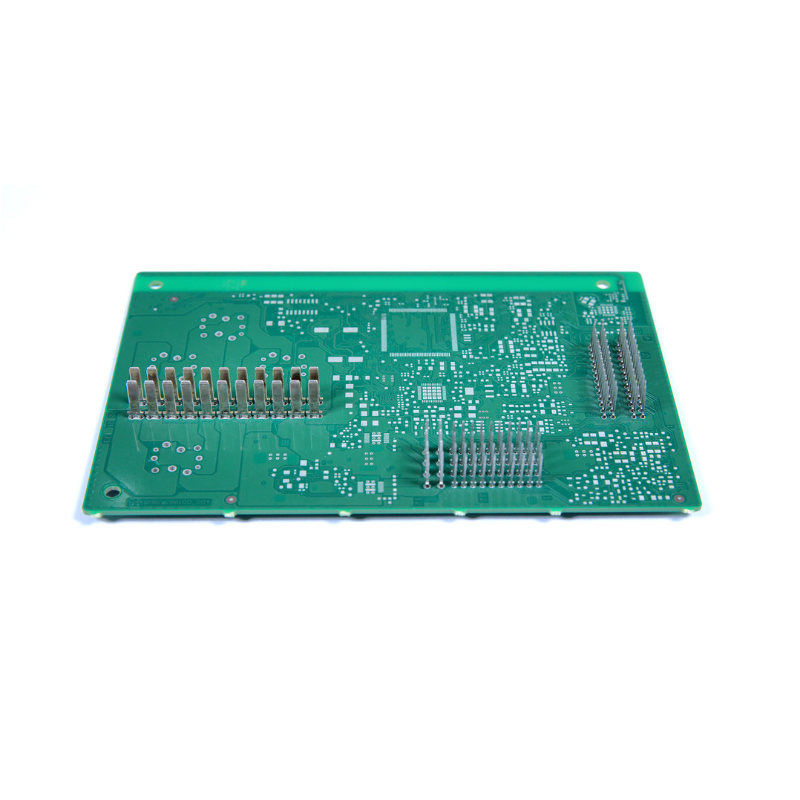

Machine is used to automatically cut the rolled metal pins into single pins before they are accurately inserted onto the PCB driven by cam mechanism with servo motor.
Feature:
-Marble frame ensures the perpendicularity, flatness, parallelism and accuracy
-Stable X and Y axis driven by servo motor
-CAM structure ensures high productivity and repetitive precision
-Real-timeinsertion force monitoringis available to achieves high-quality production
-Multi-angle DD motorwith 0.01 degre increments provides flexible production
-Connection with MES by QR code recognition
Product Description:
Machine is used to automatically cut the rolled metal pins into single pins before they are accurately inserted onto the PCB driven by cam mechanism with servo motor. PCB platform is rotated and run by X & Y axis. Marbletrame, servo motor and cam mechanism ensure high insertion accuracy, Also, with complete detection andmonitoring,makeseasyoperationand production.
