GEF6S-Pin Insertion Machine

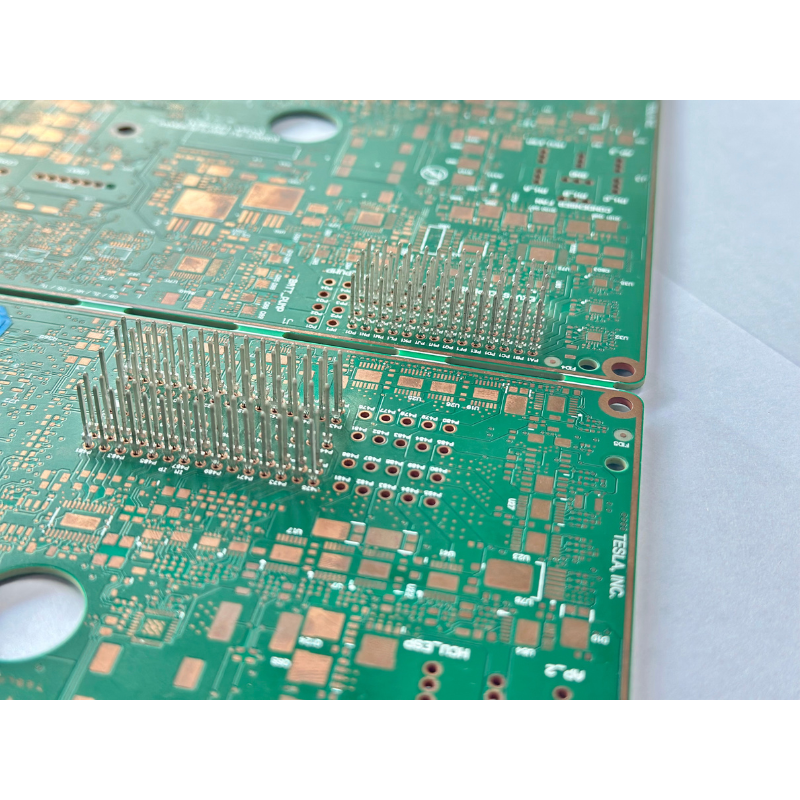

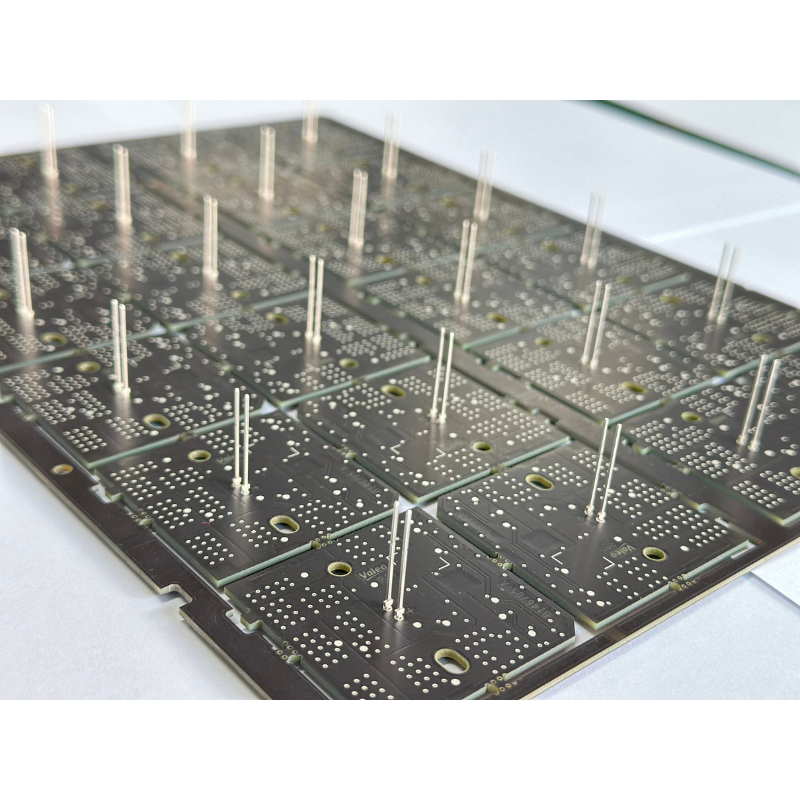

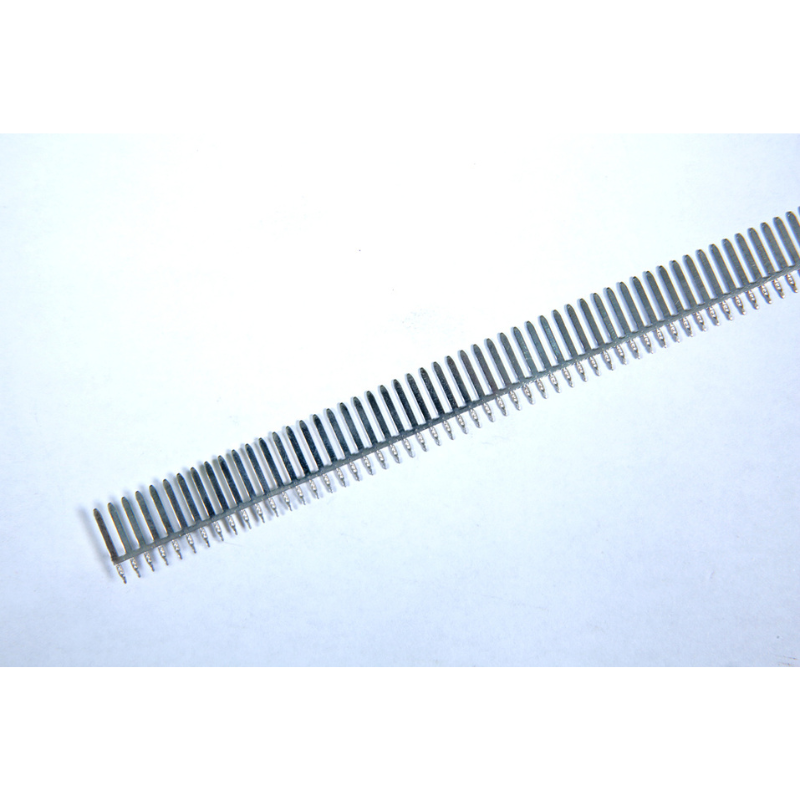

The machine is used to automatically cut the rolled metal pins into a single pin before they are accurately inserted onto the PCB driven by cam mechanism with servo motor.
Feature:
-Marble frame ensures the perpendicularity, flatness, parallelism and accuracy
-Stable X and Y axis driven by servo motor
-CAM structure ensures high productivity and repetitive precision
-Real-timeinsertion force monitoring achieves high-quality production with vision data
-Automatically PCB lanewidth adjustment
-Automatically PCB thickness detection
-Connection with MEs by QR code recognition
Product Description:
The machine is used to automatically cut the rolled metal pins into a single pin before they are accurately inserted onto the PCB driven by cam mechanism with servo motor. During the process, position is corrected by camera first,and insertion status is monitored in real-time, includinginsertion force,insertion depth etc.Monitoring.programming, automaticanalysis and easy operation make stable and automatic production.
