GEF9F-Automotive-Grade lGBT insertion Machine
The equipment is applicable to the chain-packed square shaped or pressfit pin ofpower module based on sic/sin communication.aerospace,automobile,new-energy industry.
Feature:
-2D&3D visions ensure accruracy of pin position and perpendicularity

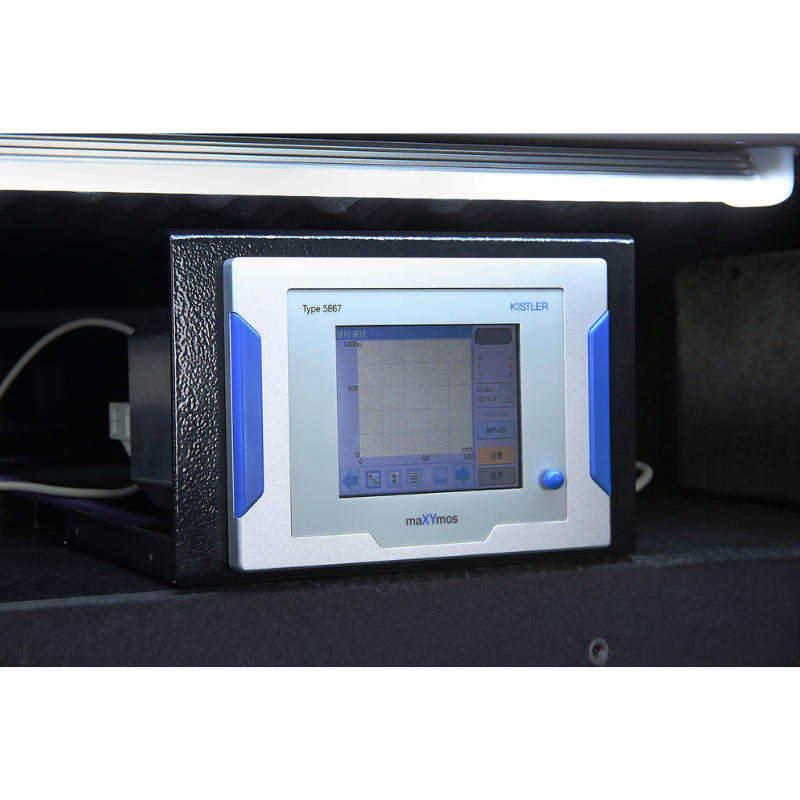

-Insertion force monitoring provides real-time feedback& bottom vision for position precision
-360*free rotation for platform with 0.01° increments
-Intergrated mable frame design with linear motor reaches up to um grade precision and efficency
-Magazine mode feeding for DBC loading and unloading in semicon industry
-Connectionwith MES byOR coderecognition
Product Description:

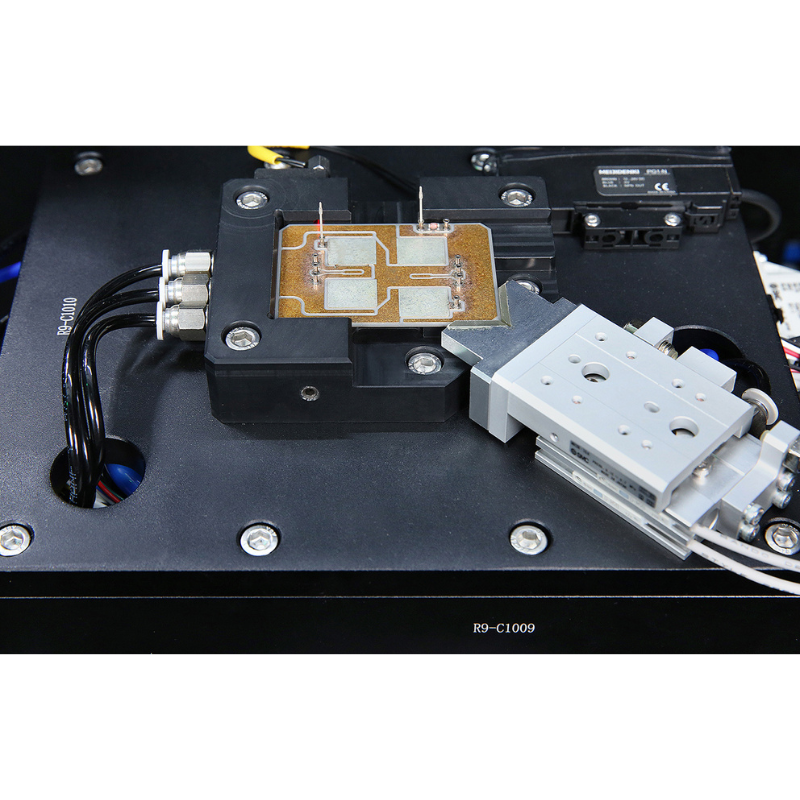

The equipment is applicable to the chain-packed square shaped or pressfit pin ofpower module based on sic/sin communication.aerospace,automobile,new-energy industry.(Rapid and stable production with low material consumption and high cost-performanceThe machine inserts the pins into the specified hole ofthe DBC with high accuracy and eficiency after cutting the chain-packed pin by cam system driven by the servo motor. After calibrating pcb by vision system,the machine can monitor realtime inserting status including inserting force ,position etc during inserting pin, The machine can realize production intelligently with the reliable system and the function ofmonitoring ,programming,diagnosing and operation.
